Hebei Hong'an Fire Door Co., Ltd. is one of the most reliable manufacturers and suppliers of internal glazed fire doors in China. If you're going to buy durable internal glazed fire doors made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.

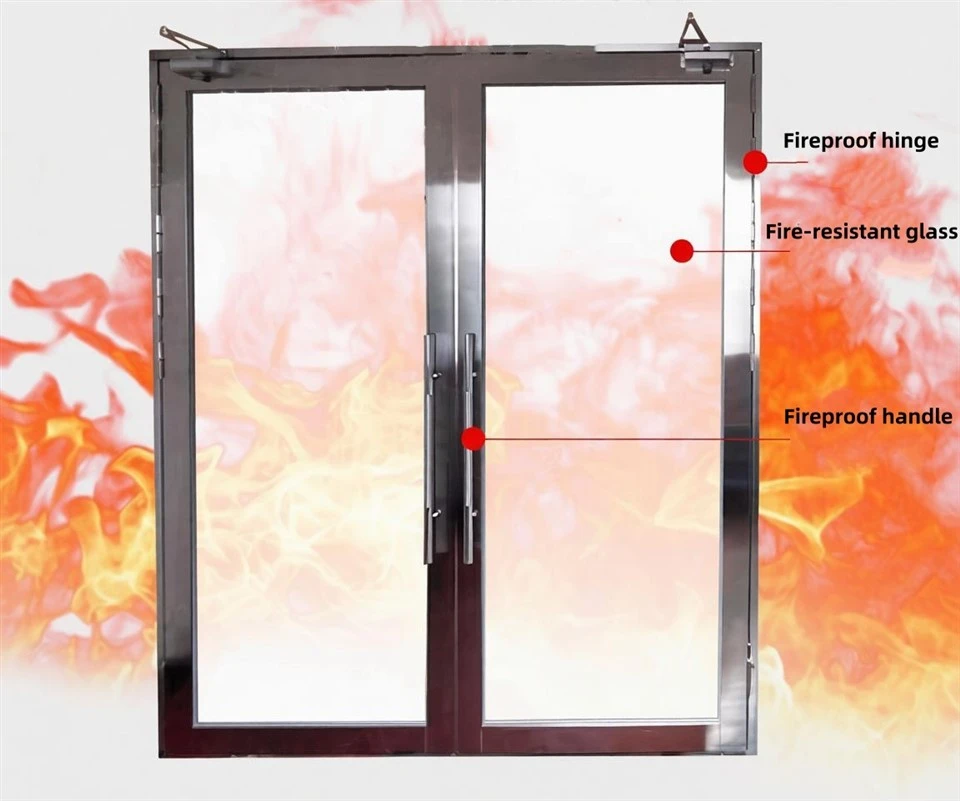

Internal glazed fire doors deliver certified fire protection while letting in natural daylight and preserving visual openness within buildings. They serve as a practical, high-performance solution for modern construction projects that need to balance strict fire safety standards with comfortable, open interior spatial design.
Internal glazed fire doors deliver certified fire protection while letting in natural daylight and preserving visual openness within buildings. They serve as a practical, high-performance solution for modern construction projects that need to balance strict fire safety standards with comfortable, open interior spatial design.
Fire-Resistant Glass Classification & Selection
In line with the national standard GB 15763.1, fire-resistant glass falls into two core categories:
Class A (Insulated Fire Glass): Satisfies both fire integrity and thermal insulation requirements. It effectively blocks flame spread and restricts the surface temperature rise on the non-fire side to a maximum of 140°C, providing comprehensive fire and heat barrier performance.
Class C (Non-Insulated Fire Glass): Only meets fire integrity standards to stop flame penetration, with no thermal insulation function.
We offer fire resistance ratings of 0.50h, 1.00h, 1.50h, 2.00h and 3.00h, covering diverse building code and project specification requirements. Notably, when Class C glass is installed on insulated fire doors, the glazed area must not exceed 0.1 square meters, and the fire integrity level of the glass must match or exceed that of the entire door assembly.
Class A insulated glazed fire doors feature glass that matches the door's overall fire rating in both integrity and insulation performance. This makes them the ideal option for high-risk areas requiring reliable heat isolation, including stairwell enclosures, elevator-adjacent fire compartments and emergency escape corridors. For general interior partitions in offices and open-plan workspaces, Class C glass is a cost-effective alternative, provided it is used within regulated area limits and suitable application scenarios.
Our fire-rated glass adopts three mainstream mature technologies:
Multi-layer composite fire glass
Constructed with special intumescent interlayers. When exposed to high temperatures, the interlayers expand and foam rapidly, forming a solid barrier to block flames and heat transmission.
Monolithic fire glass
Undergoes professional chemical strengthening treatment, boasting 6 to 12 times higher impact resistance than ordinary glass for improved durability and safety.
Filled fire glass
Double-layer hollow glass filled with transparent fire-resistant gel. The gel solidifies quickly under high heat to achieve excellent thermal insulation, while also optimizing the door's overall sound insulation effect.
Structure & Manufacturing Process
All our internal glazed fire doors fully comply with the latest national standard GB 12955-2024 (officially effective on May 1, 2026) and the industry specification T/CECS 1904-2025. The core structural design is detailed as follows:
Door Frame & Door Leaf
Made of cold-rolled galvanized steel (frame thickness ≥1.2mm) or premium steel-wood composite materials. 304/316 stainless steel cladding is available as an upgrade for high-end construction projects to enhance appearance and corrosion resistance.
01
Internal Filling Core
The door cavity is filled with non-combustible insulating materials, including high-density perlite boards (density of about 380kg/m³) or magnesium oxide boards. This ensures stable structural performance, even after professional sandbag impact testing.
02
Glass Fixing & Sealing
The fire-rated glass is firmly fixed with stainless steel or galvanized steel pressure beads. Built-in intumescent sealing strips expand when heated, effectively blocking smoke penetration during fire emergencies.
03
Testing & Certification
Every finished door assembly undergoes strict fire resistance tests in accordance with GB/T 7633 and ISO 3008 standards. Professional temperature monitoring and integrity inspections are conducted on both glass and door body components to guarantee consistent quality and performance.
04
Application Scenarios
Our internal glazed fire doors are widely applicable to various commercial and public buildings, perfectly balancing safety, lighting and aesthetics:
Hotel corridors: Transparent glass facilitates daily housekeeping and pedestrian observation, without compromising fire compartment isolation performance
Hospital wards and clinics: Unobstructed vision allows staff to quickly check escape routes and corridor conditions, supporting efficient emergency response
Office building fire zones: Preserves the open design of modern office spaces while meeting mandatory fire separation requirements between different tenant areas
Educational facilities: Improves visibility of stair landings and cross-corridor doors, enabling better student supervision and safer passage management
Atriums and building lobbies: Maintains smooth natural light circulation while forming effective fire-resistant partitions
Data centers and control rooms: Ensures reliable fire protection while allowing real-time visual monitoring of equipment and environments
Key Advantages
Optimized natural lighting
Reduces reliance on artificial indoor lighting in daily use, saving energy and improving indoor comfort
01
Open spatial experience
Avoids the cramped, enclosed feeling of traditional solid fire doors, creating more transparent and spacious indoor environments
02
Full code compliance
Fully certified to the latest GB 12955-2024 and T/CECS 1904-2025 standards, meeting mainstream building safety specifications
03
Proven reliable performance
All products pass rigorous thermal and mechanical tests, with verified fire integrity and insulation ratings for long-term stable use
04
Highly customizable aesthetics
Multiple glass types, surface finishes and door layouts are available to match diverse architectural design needs
05
Internal glazed fire doors represent an upgraded solution for modern passive fire protection, replacing traditional fully enclosed fire barriers with functional, light-transmitting safety products. Suitable for both new construction and renovation projects, our doors deliver top-tier fire resistance without compromising architectural design and indoor spatial experience. Feel free to contact us to customize the optimal glass type, fire rating and door configuration for your specific project needs.
