Hebei Hong'an Fire Door Co., Ltd. is one of the most reliable manufacturers and suppliers of insulated rolling shutter door in China. If you're going to buy durable insulated rolling shutter door made in China, welcome to get free sample from our factory. All customized products are with high quality and low price.

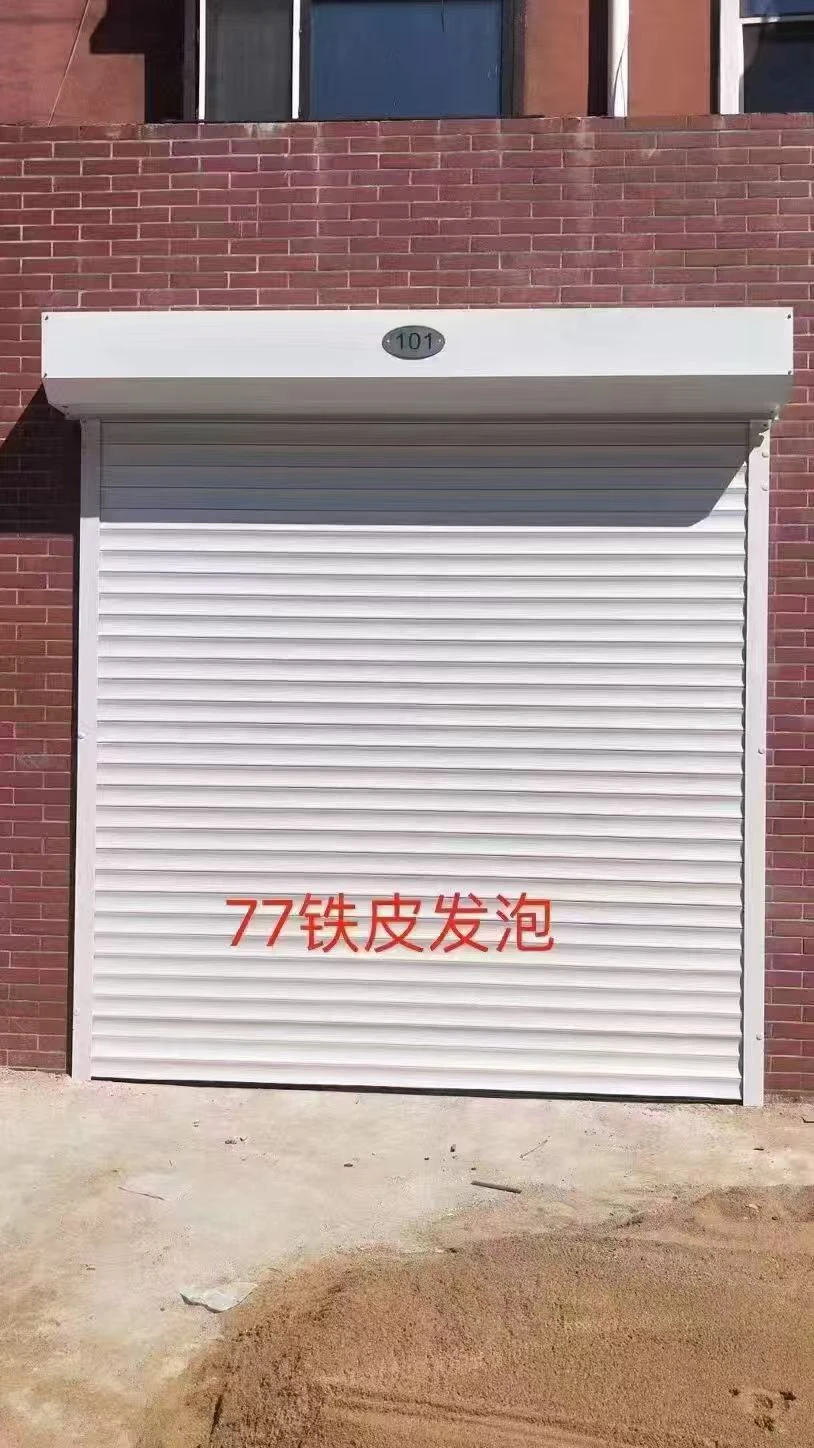

The Insulated Rolling Shutter Door is a high-performance closure solution designed to minimize heat transfer between different environments. Unlike standard rolling shutters, this door incorporates advanced thermal barriers – typically multi-layer aluminum foil air pockets, polyurethane foam-filled slats, or composite insulating materials – to achieve excellent thermal resistance (R-value). It effectively reduces energy loss, prevents condensation, and maintains stable interior temperatures. This makes it indispensable for facilities where temperature control is critical, from cold storage warehouses to climate-controlled manufacturing plants.
Key Application Scenarios
Cold Storage & Freezer Warehouses
In logistics, maintaining sub-zero temperatures is essential for preserving perishable goods such as meat, seafood, dairy, and frozen produce. Insulated rolling shutter doors are installed at loading docks, partition walls, and freezer entrances. Their high-density insulation (often 40-80mm thick polyurethane core) drastically reduces cold air leakage and frost formation. The rapid opening/closing mechanism (typically 0.2-0.3 m/s) also limits the time of temperature exchange during forklift passage.
Food & Beverage Processing Plants
Factories producing chocolate, bakery items, beverages, or fresh produce require strict humidity and temperature control. Insulated rolling shutters separate production zones (e.g., 4°C meat processing) from ambient areas. The smooth, non-corrosive surface of aluminum or coated steel slats resists moisture, cleaning chemicals, and frequent washdowns – meeting food safety standards like HACCP or GMP.
Pharmaceutical & Cleanroom Facilities
Drug storage (e.g., vaccines at 2-8°C), sterile manufacturing, and laboratory environments demand both thermal stability and air tightness. Insulated rolling shutters with perimeter seals (rubber or brush strips) prevent temperature drift and particulate ingress. The compact headroom design suits spaces with suspended ceilings or HVAC ducts.
Refrigerated Distribution Centers
High-traffic logistics hubs with multiple temperature zones (-25°C freezer, +2°C chiller, +15°C dry goods) use insulated rolling shutters for internal compartmentalization. The doors are often integrated with automated warehouse control systems to open only when needed, reducing energy waste.
Climate-Controlled Retail & Display Areas
Supermarket frozen food aisles, wine cellars, ice rinks, and data centers (where overheating is a risk) also benefit. The door can be fitted with transparent vision panels to maintain visibility without opening.
Outdoor Protection
For loading bays in harsh climates, insulated rolling shutters act as wind-proof, dust-proof barriers while keeping heated or air-conditioned interiors comfortable. Some models achieve U-values as low as 0.4 W/m²K.
Maintenance & Care Guidelines
To ensure long service life, reliable operation, and sustained energy efficiency, regular maintenance of insulated rolling shutter doors is essential. Below is a recommended schedule and procedures.
Visual inspection: Look for damaged slats (dents, cracks) or loose hinges. Any breach in the insulation layer will reduce thermal performance.
Clean tracks & seals: Remove debris, ice, or dust from side guides and bottom rail. Wipe perimeter seals with a damp cloth to prevent hardening or cracking.
Test operation: Run the door through one full open/close cycle. Listen for unusual grinding or squeaking noises.
Lubrication: Apply a lithium–based or silicone lubricant to all moving parts – hinges, rollers, chain/belt drive, and bearing points. Avoid over–lubricating; wipe excess oil to prevent dust attraction.
Check tension & alignment: For spring assisted or counterweight systems, verify that the door stays at any position when stopped halfway. If it drifts, adjust spring tension or call a technician.
Inspect weatherstripping: Rubber gaskets at the bottom and sides should be flexible and create a tight seal. Replace any sections that are cracked, flattened, or missing.
Motor & control unit: Clean ventilation grilles on the motor housing. Test emergency manual release – pull the chain or crank to ensure smooth manual operation. Verify that limit switches stop the door at correct open/closed positions.
Insulation integrity: On foam–filled slats, check for water ingress (which can freeze and expand, splitting the slat). Repair or replace damaged sections promptly.
Electrical safety: Inspect cables for fraying; tighten terminal connections. If the door is integrated with a fire alarm or temperature monitoring system, test those interlocks.
Hire a certified door technician to perform a comprehensive overhaul: measure insulation resistance, recalibrate sensors, check door balance, and test cycle count.
For cold storage applications, also verify anti condensation heaters (if installed) around the perimeter to prevent ice buildup on seals.
Condensation/Frost: Ensure the door closes completely and the heating of the door frame (in freezers) is functional.
Slow Operation: Often due to low lubricant or failing motor – clean and lubricate first; if persists, replace drive belt/chain.
Noisy Operation: Tighten loose brackets and replace worn nylon rollers.
Conclusion
The Insulated Rolling Shutter Door is a vital component for any facility demanding temperature stability, energy savings, and operational efficiency. From frozen food warehouses to pharmaceutical cleanrooms, its robust insulation and fast, reliable operation deliver measurable ROI through reduced utility bills and product loss. With a disciplined maintenance routine – daily cleaning, monthly lubrication, and annual professional checks – this door will provide trouble free service for over a decade, maintaining its thermal performance and safety standards.
